Radial Telescopic Ship & Barge loaders



Radial Telescopic Ship & Barge loader

The Radial Telescopic barge loader offers unrivalled mobility and flexibility when loading a vessel.


Key Features

  • Easily trim 3 x hatches from one single feed-in position
  • Parallel driven wheels for quick 'hatch to hatch' times, along with telescopic to 'pass' infrastructure on geared vessels
  • Telescopic feature ensures unrivalled trimming capabilities
  • Dust containment, suppression and extraction options available
  • Telescopic free-fall and cascade chutes available
  • Mobility to move 'Off-site' when not in use

Description

The mobile radial telescopic ship / barge loader ensures unrivaled flexibility when loading a vessel. The radial and telescopic features allow the operator to easily trim the hatch or multiple hatches from one feeding position, reducing hatch change times and production downtime. They can load vessels with ease and we offer a complete range of mobility and dust suppression / extraction options for specific applications and materials, as well as a comprehensive range of mobility options, including tracked, wheeled and mounted on rails.

Options

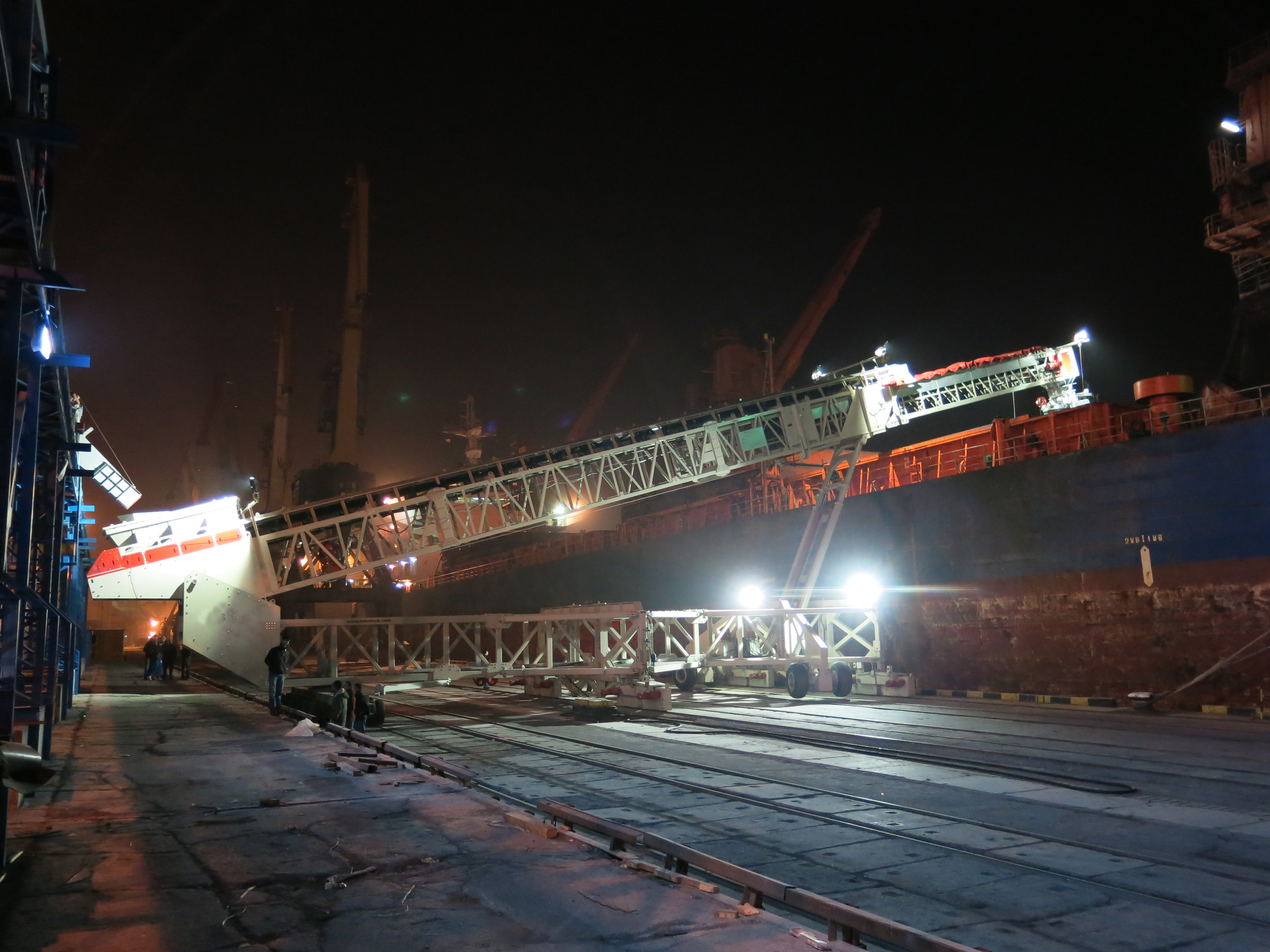

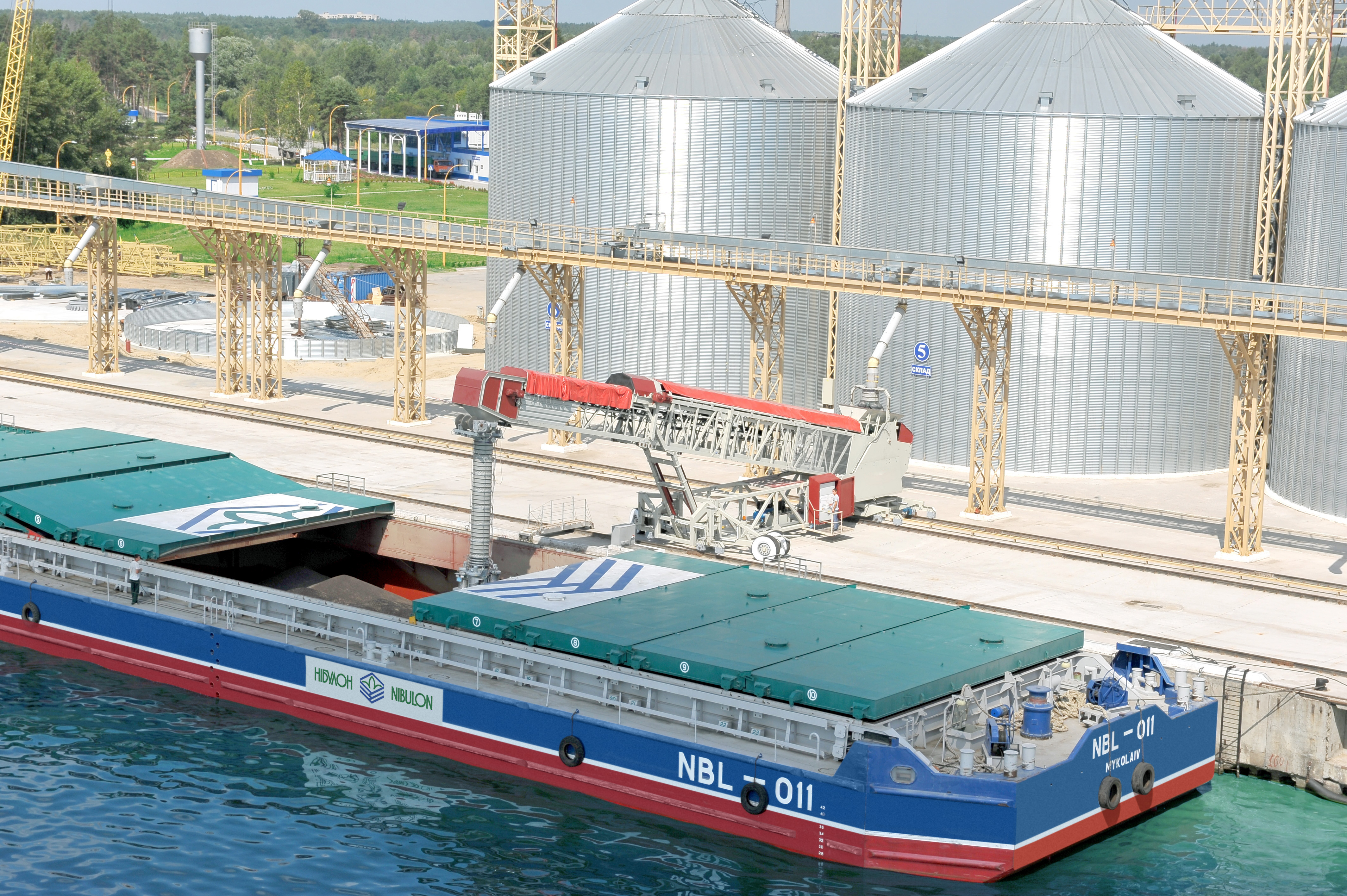

  • Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • Radio remote controls
  • Various power options - All-electric, diesel-hydraulic & diesel-electric
  • Marine specification paint finish

Features & Benefits

  • Radial and Telescopic features offer unrivaled trimming capabilities for most sized vessels
  • Mobility means Flexibility - Complete range of on-site mobility options including driven wheels, tracks and rail line bogies to suit complete range of jetty/quayside designs
  • Complete range of dust containment, suppression and extraction options for minimizing dust emmissions
  • Fully sealed feed-in, transfer and discharge points to eliminate spillage and dust emmissions on site
  • Loading rates up to 3,000 TPH
  • Fully extended conveyor lengths of up to 58 metres/ 190 feet
  • Lower capital investment than fixed ship/barge loading systems
  • Lead times can range from 10 - 30 weeks
  • Reduced civil requirements on site
  • Land / sea based systems are available
  • Eliminate double handling of material in port/ inland terminal

Options

  • Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • Radio remote controls
  • Various power options - All-electric, diesel-hydraulic & diesel-electric
  • Marine specification paint finish

Applications

Mobile Ship and Barge loaders / Unloaders designed for loading Barges, Coasters, Handysize, Handymax, Panamax Vessels

Complete mobility for use in differing sized ports and loading complete range of vessels

Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

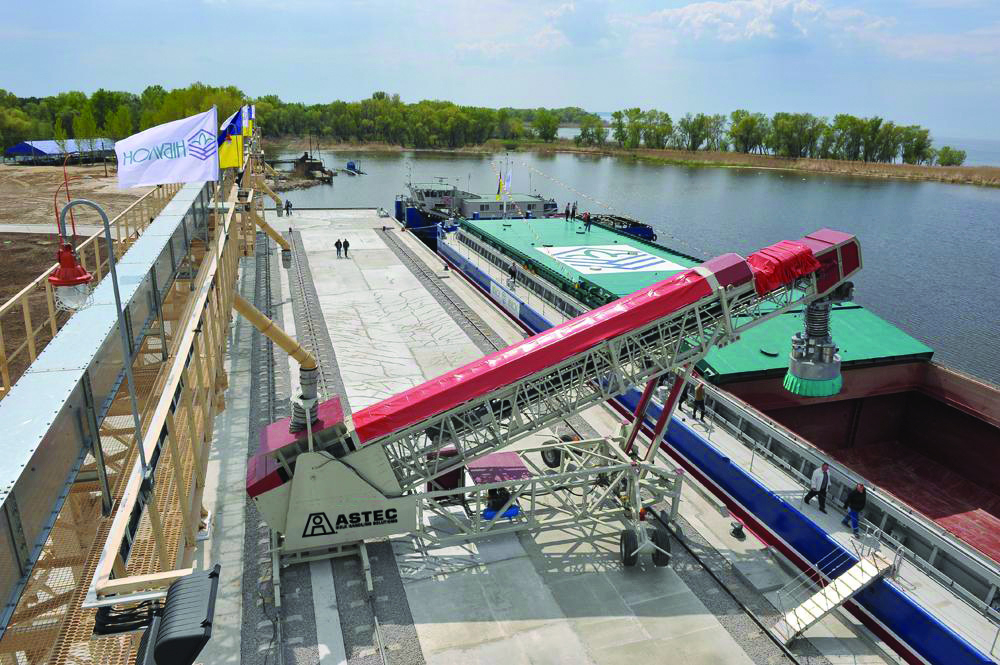

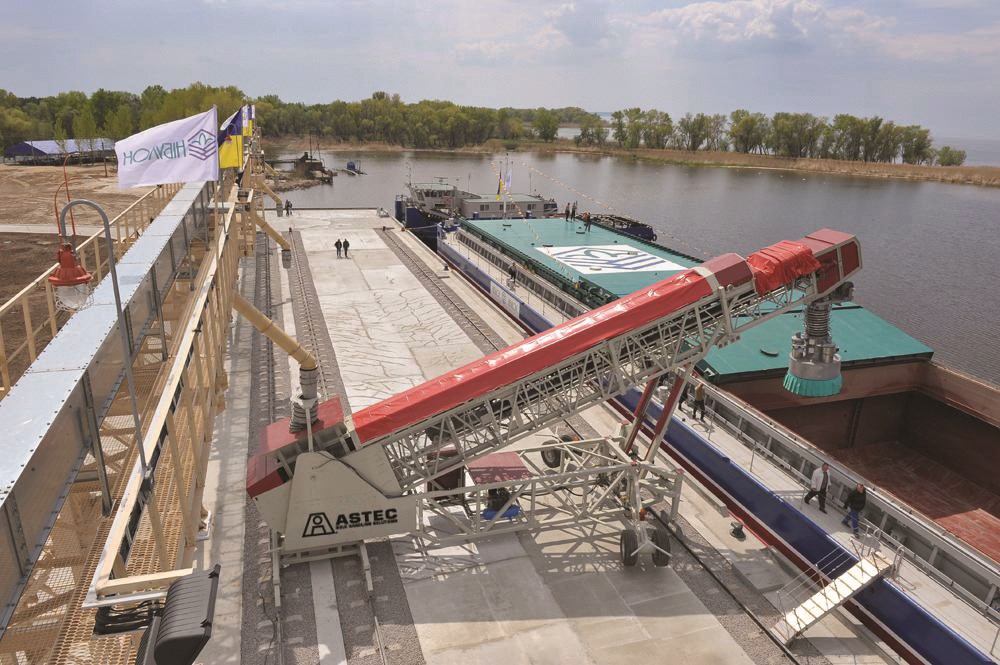

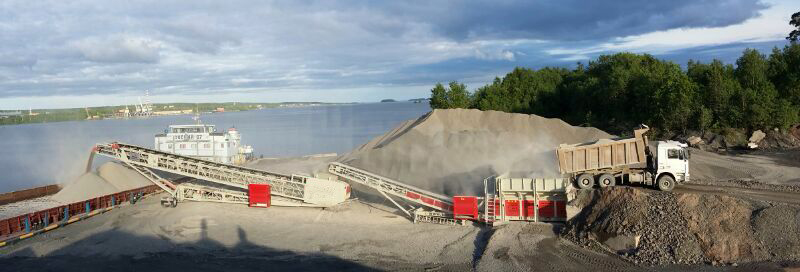

Can be easily fed from fixed conveyor systems, wheel loaders, trucks, overhead conveyors, tripper conveyors and many more systems.

Options

  • Mobility – Driven wheels (In-line, parallel, radial modes), Track mounted (Harsh ground conditions), wheels and rail mounted
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • Radio remote controls
  • Various power options - All-electric, diesel-hydraulic & diesel-electric
  • Marine specification paint finish
