Rail Mounted Shiploader



Rail Mounted Shiploader

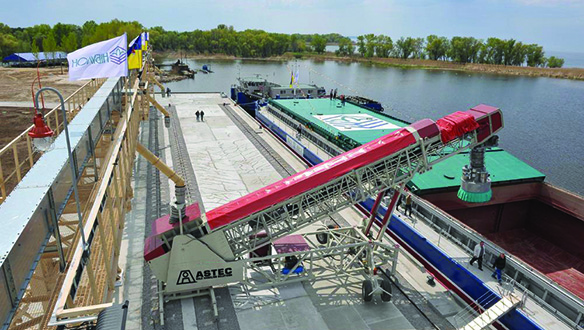

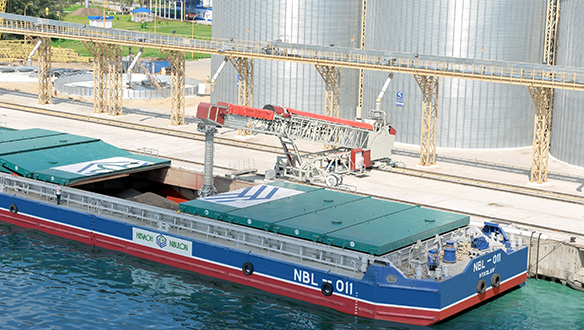

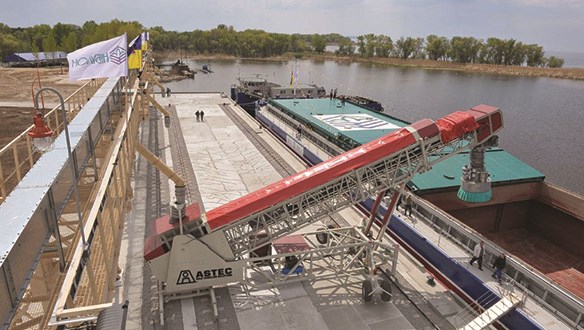

The rail mounted telescopic ship loaders bring together the flexibility of telescopic technology and high mobility of being mounted on rail lines to provide a highly effective ship loading solution.


Key Features

  • The only rail mounted and radial telescopic shiploader on the market
  • Telescopic feature allows greater trimming capabilities along with the parallel travel of the rails
  • Easily integrated with tripper and hopper conveyor systems
  • Complete dust containment, suppression and extraction options available

Description

The rail mounted telescopic shiploaders bring together the flexibility of telescopic technology and high mobility of being mounted on rail lines to provide a highly effective ship loading solution. Our rail mounted shiploaders allow the operator to move the unit parallel to the vessel along the quayside, with the telescopic conveyor trimming the hatch of the vessel accordingly. They can load vessels up to Panamax size with ease. A complete range of options including telescopic discharge chutes and dust control features are available for all applications and materials.

Options

  • Full integration with tripper/overhead conveyor systems to ensure a complete ‘package’ project
  • On-board diesel electric generators to power entire shiploading system
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • Radio remote controls
  • Marine specification paint finish
  • Customised projects to meet the needs of the customer

Features & Benefits

  • Parallel-to-vessel travel, radial and telescopic features offer unrivalled trimming capabilities for most vessel sizes
  • Smooth transition down quayside for quick hatch-to-hatch transfer
  • Full integration with feeding equipment – tripper / overhead conveyor systems
  • Complete range of dust containment, suppression and extraction options for minimizing dust emmissions
  • Fully sealed feed-in, transfer and discharge points to eliminate spillage and dust emmissions on site
  • Loading rates up to 3,000TPH
  • Fully extended conveyor lengths of up to 58 metres/ 190 feet
  • Lead times can range from 10 - 30 weeks
  • Land / sea based systems are available
  • Eliminate double handling of material in port/ inland terminal

Options

  • Full integration with tripper/overhead conveyor systems to ensure a complete ‘package’ project
  • On-board diesel electric generators to power entire shiploading system
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • Radio remote controls
  • Marine specification paint finish
  • Customised projects to meet the needs of the customer

Applications

Rail mounted Shiploaders / Unloaders designed for loading Barges, Coasters, Handysize, Handymax, Panamax Vessels

Ease of travel down quayside with integrated rail bogie units for smmoth transistion down the quayside.

Ability to handle complete range of materials such as Coal, Grains, Fertilisers, Ore’s (Iron, copper, gold, bauxite), Aggregates, Woodchips, wood pellets, sulphur, cement clinker and many more....

Can be easily fed from tripper conveyor systems, wheel loaders, trucks, overhead conveyors and many more systems.

Upgrade option available to incorporate radial function on rail mounted shiploader for further trimming capabilities.

Options

  • Full integration with tripper/overhead conveyor systems to ensure a complete ‘package’ project
  • On-board diesel electric generators to power entire shiploading system
  • Galvanised / canvas dust covers
  • Dust extraction units mounted at transfer points
  • Telescopic discharge chutes - Free-fall, cascade & rotational trimmer chutes available
  • Rubber ‘sock’ chutes
  • Spray bars for dust suppression
  • Sealing of all transfer points including side plates and under-trays
  • Radio remote controls
  • Marine specification paint finish
  • Customised projects to meet the needs of the customer

Gallery

Images

Case Studies

Case Studies Coming Soon
